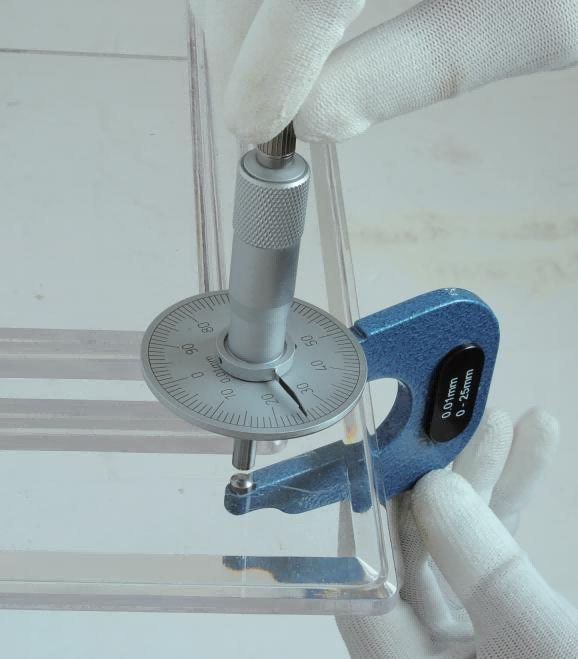

大刻度盘读数方便、迅速。用于测量板材厚度。
硬质合金测量面;棘轮测力。
货号 | 测量范围 | 精度 | 弓深 |
---|---|---|---|

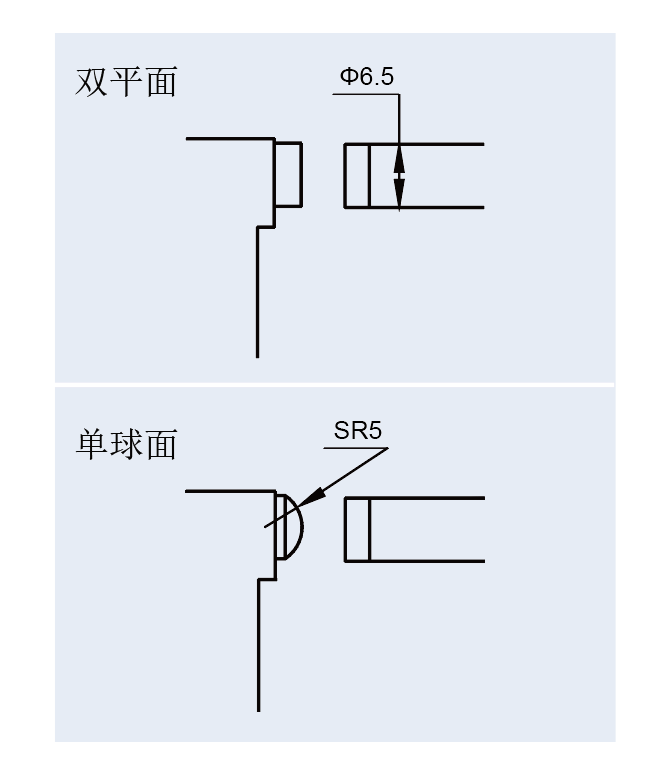

平测量面 | |||
207-01-010 | 0-15mm | 0.004mm | 50mm |
207-02-010 | 0-25mm | 0.004mm | 50mm |
207-03-010 | 0-50mm | 0.005mm | 100mm |
球测量面 | |||
207-31-010 | 0-15mm | 0.004mm | 50mm |
207-32-010 | 0-25mm | 0.004mm | 50mm |
207-33-010 | 0-50mm | 0.005mm | 100mm |

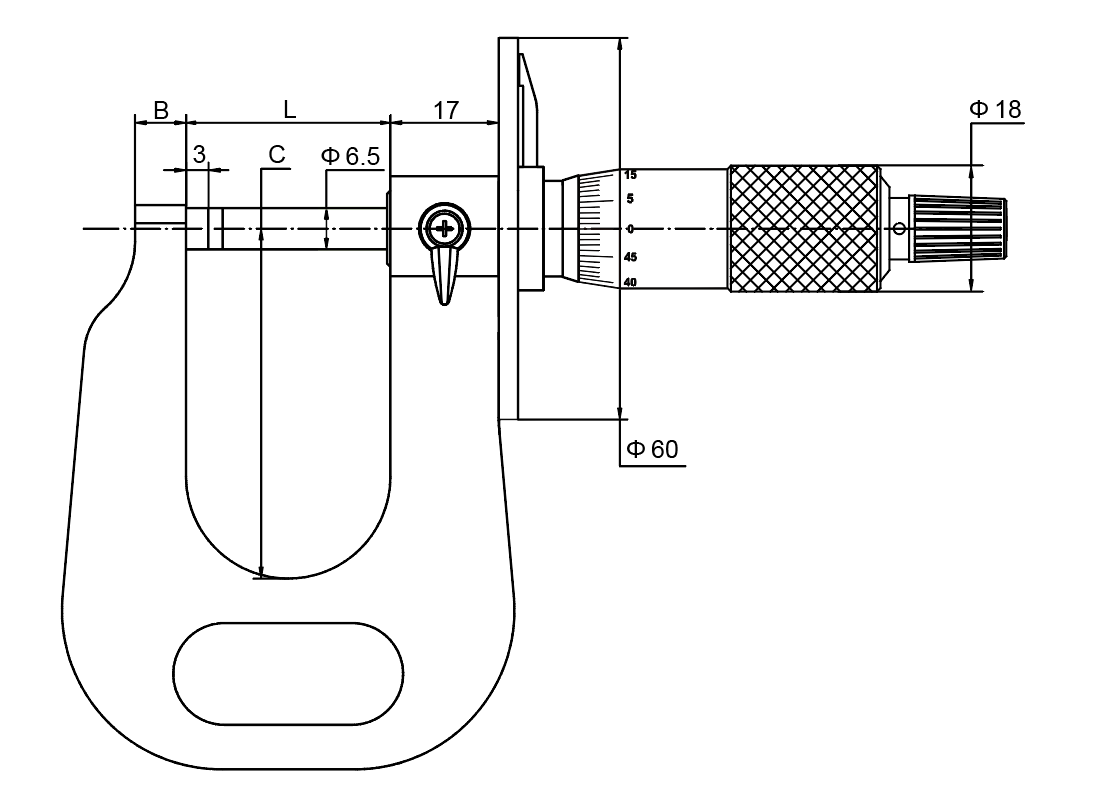

测量范围 | L | B | C |
---|---|---|---|
0-15mm | 22mm | 8mm | 50mm |
0-25mm | 32mm | 8mm | 50mm |
0-50mm | 57mm | 12mm | 100mm |
